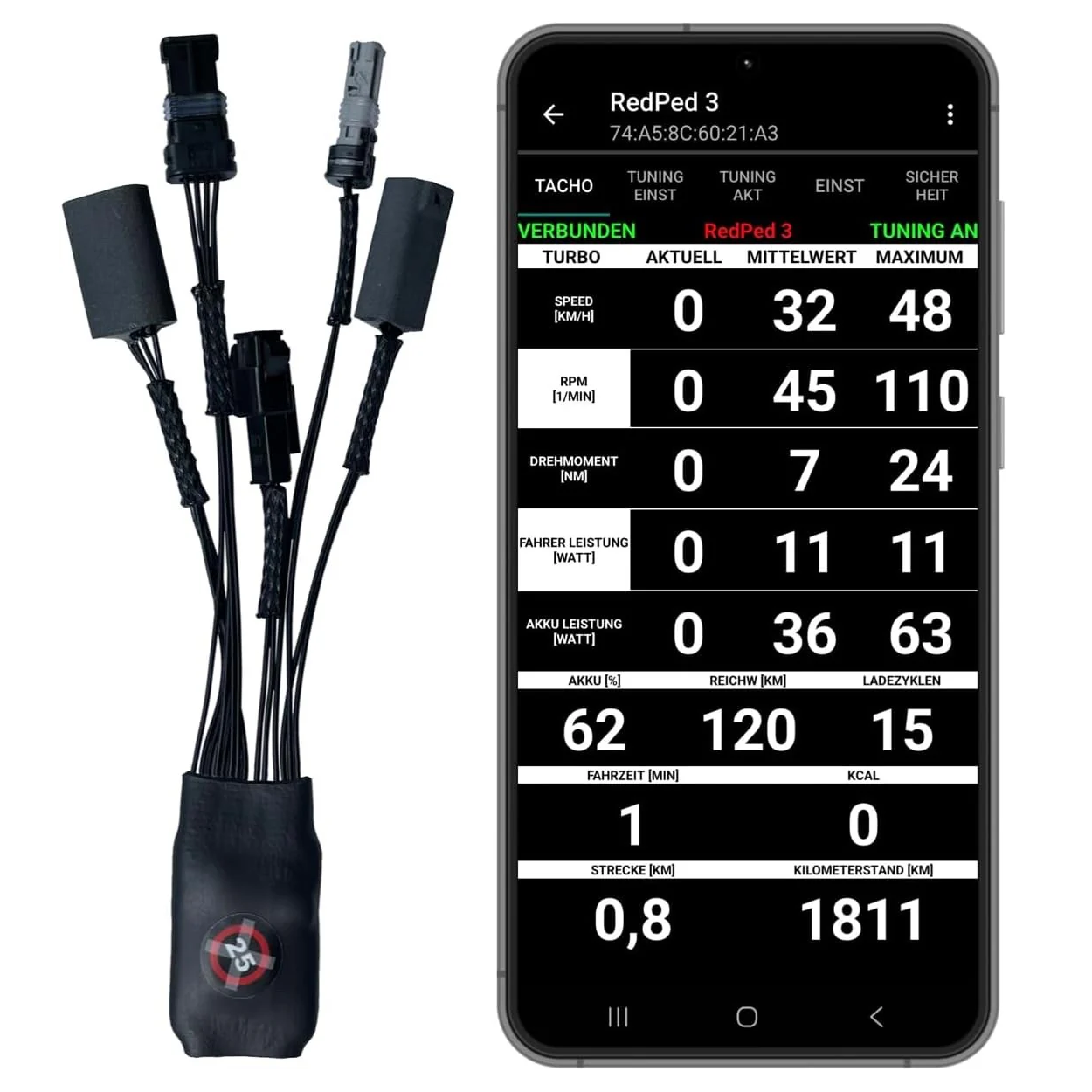

RedPed 3 for Bosch BES2 Gen2-Gen4 Tuning Module E-Bike (NOT Bosch Smart)
RedPed 3 for Bosch BES2 Gen2-Gen4 Tuning Module E-Bike (NOT Bosch Smart)
Regular price
€139,99 EUR
Regular price
Sale price
€139,99 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
REDPED 3
Bosch tuning with app
BES2 · Gen2 · Gen3 · Gen4
15–99
Adjustable in km/h
APP
Settings & Data
LIVE
Ride data
COMPATIBILITY
Bosch BES2
Gen2
Gen3
Gen4
Not compatible with Bosch Smart System BES3
This RedPed 3 module is intended exclusively for the Bosch BES2 system.
✓
Displays & Firmware
Compatible with all displays and firmware versions of the supported BES2 motors.
Compatible with all displays and firmware versions of the supported BES2 motors.
✓
Gen2 motors
Gen2 motors do not have tuning detection.
Gen2 motors do not have tuning detection.
!
Gen3 motors
Tuning detection is active from firmware version 1.8.4.0.
Tuning detection is active from firmware version 1.8.4.0.
!
Gen4 motors
Gen4 motors have tuning detection with all firmware versions.
Gen4 motors have tuning detection with all firmware versions.
For motors with tuning detection, we recommend a maximum speed of up to
33 km/h.
Unlocking speeds of up to 99 km/h is possible at your own risk.
REDPED APP
Customize tuning settings
All important settings can be conveniently adjusted via the RedPed app.
Maximum speed
Individually adjustable between 15 and 33 km/h. After unlocking, speeds of up to 99 km/h are also possible at your own risk.
Actual speed
The actual speed is displayed directly on the e-bike display.
Tuning activation
Tuning can be conveniently activated using a button combination on the control unit.
Ride tracking
The RedPed app can record rides and display them on a map.
LIVE DATA
Keep an eye on your e-bike
Numerous Bosch system values can be displayed directly in the RedPed app.
SPEED
km/h
TORQUE
Nm
RIDER POWER
Watts
BATTERY POWER
Watts
CADENCE
RPM
RANGE
km
Also: KCAL · Battery cycles · Ride time · Distance
ADDITIONAL FEATURES
More control with RedPed 3
●
Speed Offset
Only reduces the speed displayed on the e-bike display.
●
Tuning timer
Tuning is automatically deactivated after a preset period while stationary.
●
Overrun function
Missing kilometers are automatically added while stationary.
●
Invisible module
The module can be made invisible in the app and made visible again using a key combination.
●
Workshop mode
The data between the motor and display is not manipulated.
●
Troll mode
The E-bike switches off or restarts when there is no connection to the RedPed App.
INSTALLATION & SETUP
Step-by-step instructions
Detailed information on installation, setup, and operation can be found here.
REDPED APP
For Android & iOS
Adjust settings, view live data, and record routes.
LEGAL NOTICE
Disclaimer
The E-bike tuning chips offered are intended exclusively for use on private property or in countries where their use is legally permitted. The buyer is solely responsible for complying with all applicable legal regulations.
- Using the tuning chips may void the E-bike manufacturer's warranty claims and impair road safety.
- We assume no liability for damage, accidents, fines, or other consequences resulting from the use of the tuning chips.
- Installation and use are at the buyer's own risk.
